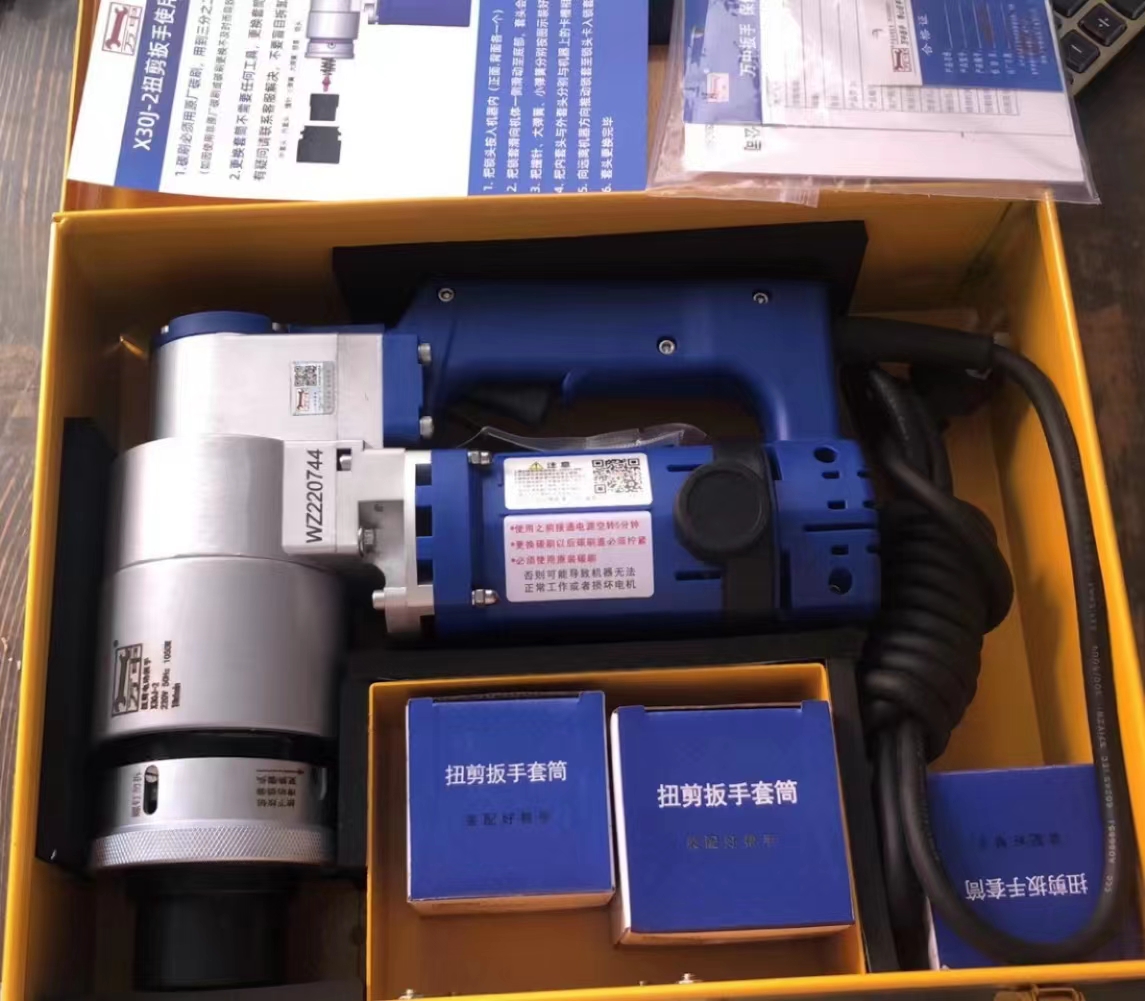

The electric torque shear wrench is specially used to fasten high-strength torque shear bolts, and after the fastening is completed, keep the cut torx head inside the sleeve, and then pull the trigger to eject the torx head. The power is 220V or 110V AC power supply. Compared with the traditional hexagon bolt, the torque shear bolt and the electric torque shear wrench are convenient and fast for construction, accurate torque control, and convenient for inspection.

扭剪型電動扳手使用：

Use of twist shear type electric wrench:

1、用扳手內套筒完全插進螺栓尾部梅花頭部分，同時向前推動扳手，內套筒后退，使外套筒完全套住螺母，若不能完全套住螺母請左右轉動扳手并向前用力。

1. Insert the inner sleeve of the wrench fully into the box head at the end of the bolt, push the wrench forward at the same time, and the inner sleeve moves backward to make the outer sleeve completely cover the nut. If the nut cannot be completely covered, turn the wrench left and right and force forward.

2、扣動扳手開關，使其旋轉。

2. Turn the wrench switch to rotate it.

3、擰斷梅花頭，緊固結束，彈出梅花頭即可。

3. Screw off the plum blossom head, fasten it, and pop it out.

扭剪型電動扳手注意事項：

Precautions for twist shear type electric wrench:

1、不可在雨天或潮濕的環境中使用本機，以免漏電。

1. Do not use the machine in rainy days or humid environments to avoid electric leakage.

2、使用本機高空作業時，請系好帶，在操作點下方嚴禁站人及放置貴重物品。

2. When using this machine to work at heights, please fasten your safety belt. It is strictly forbidden to stand under the operation point and place valuables.

3、使用本機時需遠離易燃易爆物品。

3. Keep away from inflammables and explosives when using this machine.

4、嚴禁破壞電源線及使用電源線拖拉本機。

4. It is forbidden to damage the power cord or use the power cord to drag the machine.

5、檢查及維修本機時應先切斷電源。

5. Cut off the power supply before checking and repairing the machine.

扭剪型電動扳手檢查與維修：

Inspection and maintenance of torsional shear type electric wrench:

1、定期檢查碳刷，建議碳刷小于7mm時進行更換。

1. Check the carbon brush regularly. It is recommended to replace the carbon brush when it is less than 7mm.

2、保持內外套筒清潔不得混入雜物。用完本機后應擦拭干凈存放于干燥處。

2. Keep the inner and outer sleeves clean and free of sundries. After using the machine, it should be wiped clean and stored in a dry place.

3、使用前應檢查各緊固螺釘是否松動，如果松動應及時緊固，并試轉聲音是否正常，如果出現異常聲音應及時檢修。

3. Before use, check whether the fastening screws are loose. If they are loose, tighten them in time, and check whether the sound of trial run is normal. If there is abnormal sound, repair them in time.
